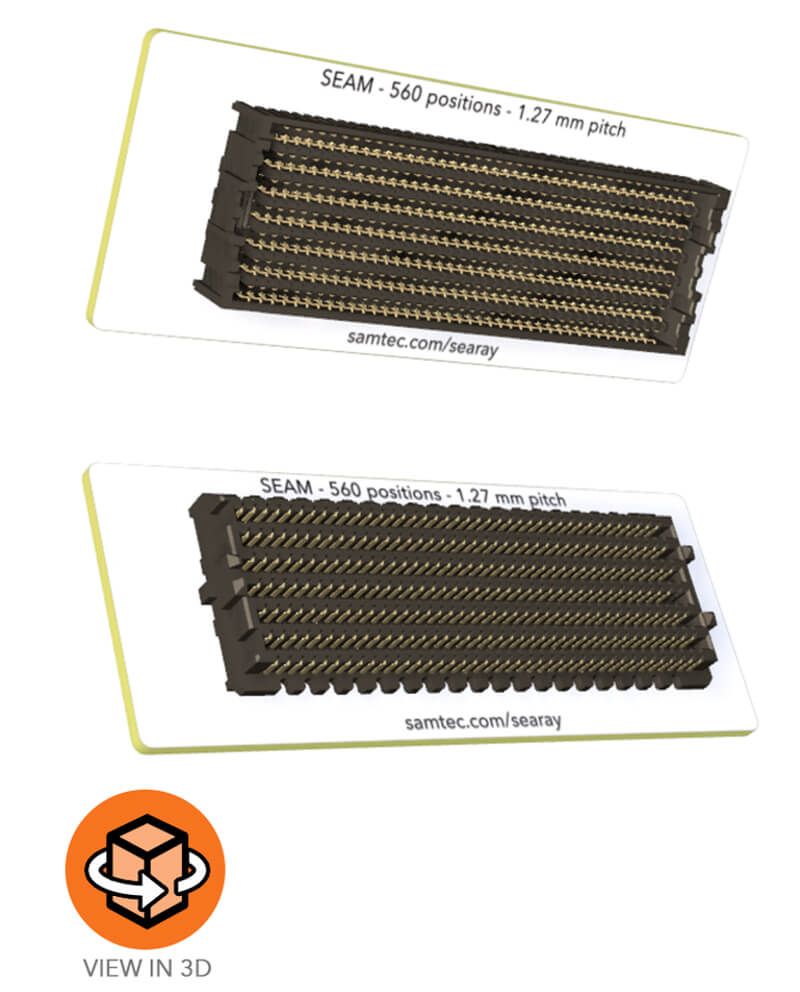

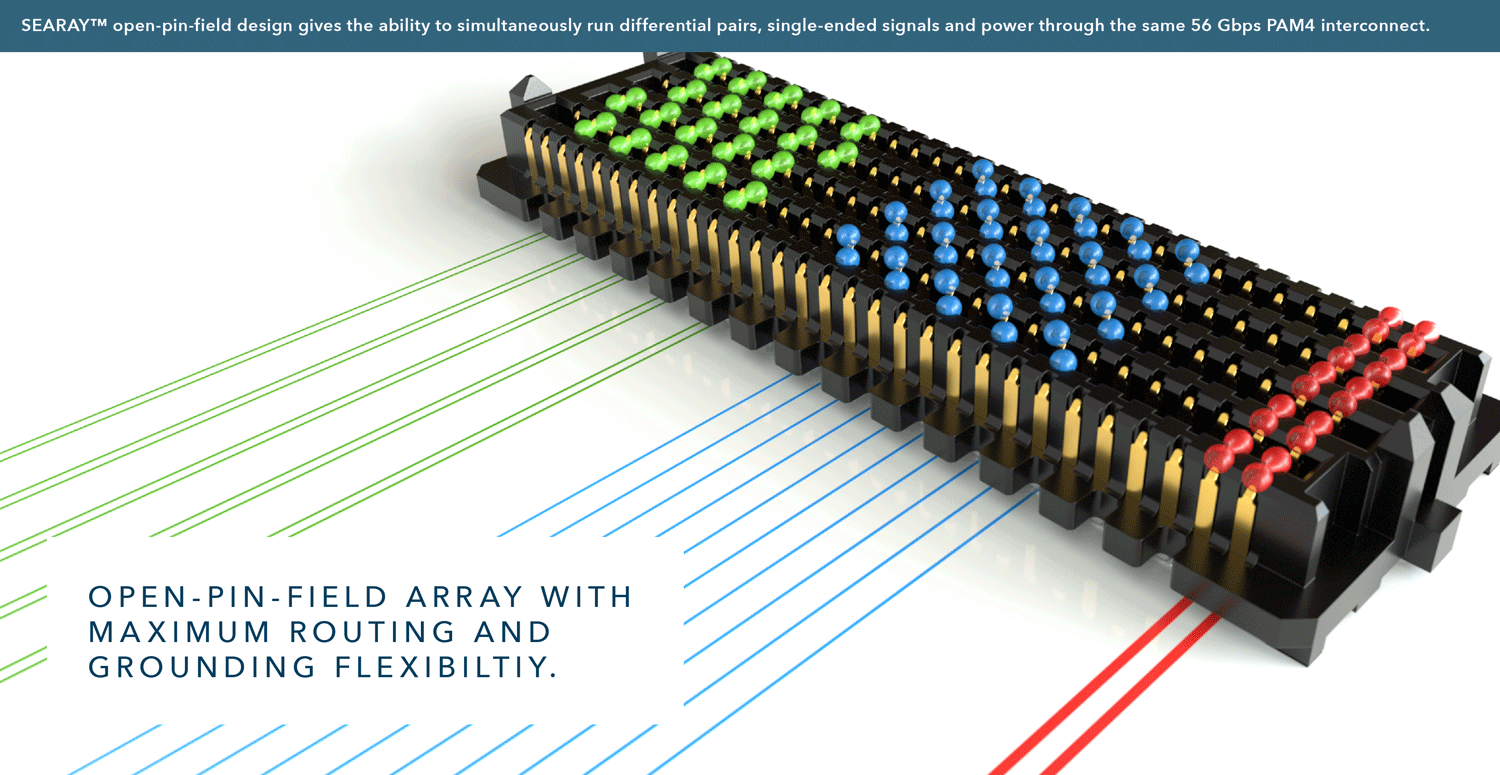

SEARAY™高密度开放式端子阵列

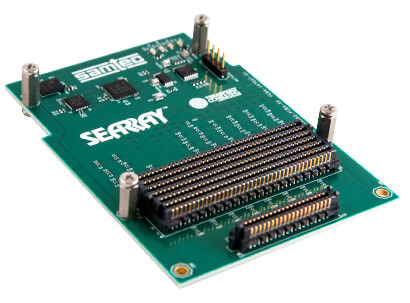

Samtec的SEARAY™产品系列提供业界最大的高速、高密度开放式端子阵列产品组合。SEARAY™ SI评估套件为系统设计人员和SI工程师提供了一个易于使用的解决方案，用于测试夹层、共面和直角配置中的许多SEARAY™连接器。SEARAY™ SI评估套件（REF-219213-X.XX-01）采用稳健的机械设计，提供了一个由四块PCB板组成的高品质系统。如需了解更多信息，请通过 [email protected] 联系Samtec的技术专家。

零件编号：REF-219213-X.XX-01

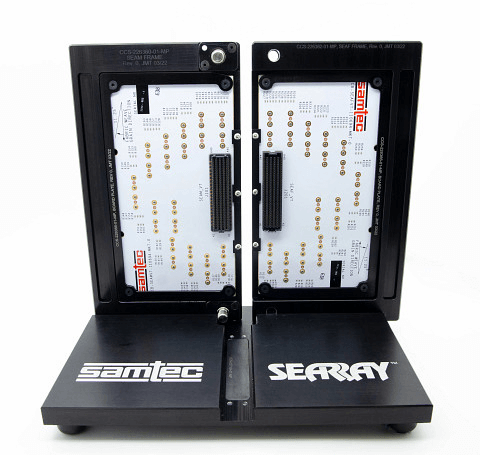

Samtec's SEARAY™ product family offers the industry's largest portfolio of high-speed, high-density open-pin-field arrays. The SEARAY™ Analog Over Array™ SI Evaluation Kit provides system designers, SI engineers and RF engineers an easy-to-use solution for testing the RF capabilities of SEARAY™ connectors. The SEARAY™ Analog Over Array™ SI Evaluation Kit (REF-231562-X.XX-XX) delivers a high-quality system of two PCBs with robust mechanical design. Please contact Samtec's technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-231562-X.XX-XX

Samtec的VITA™ 57.4 FMC+™ HSPC/HSPCe回路卡为FPGA设计人员提供了一种易用型回路选项，可在任何FPGA开发板或FPGA载体卡上测试低速和高速数千兆位收发器。它可以在所有通道上并行运行系统数据或BER测试。这使得FPGA的评估和开发变得更加容易，是28 Gbps测试设备的理想替代品。

零件编号：REF-197693-01

Samtec的VITA™ 57.4 FMC+ ™ HSPC 回路卡为FPGA设计人员提供了一种易于使用的回路选项，可在任何FPGA开发板或FPGA载体卡上测试低速和高速数千兆位收发器。它可以在所有通道上并行运行系统数据或BER测试。这使得FPGA的评估和开发变得更加容易，是28 Gbps测试设备的理想替代品。

零件编号：REF-197618-01

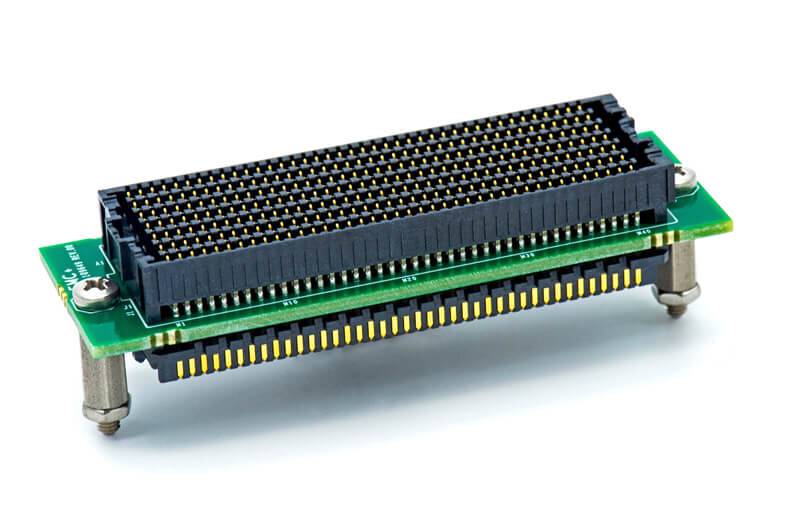

Engineers prototyping with industry-standard FPGA evaluation and development kits often leverage the FMC+™ interface for I/O expansion that fits their application needs. In some cases, the mating height of the standard FMC+™ connectors may prevent fully leveraging the connectivity options of all FMC+™ modules. In response to that need, Samtec has developed the FMC+™ Extender Card for placement between FPGA Carrier Cards and FMC+™ Modules. This increased space can be used for additional I/O expansion during development. The FMC+™ Extender Card also provides a cost-effective option for extending the life of the FPGA Carrier Card HSPC connectors used as test platforms.

零件编号：REF-212564-01

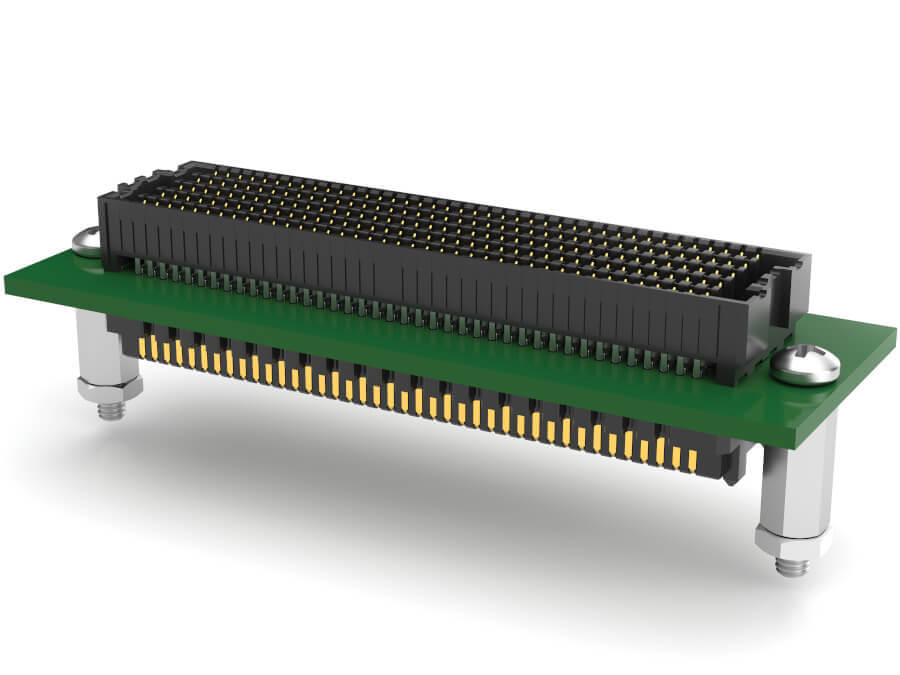

Engineers prototyping with industry-standard FPGA evaluation and development kits often leverage the FMC interface for I/O expansion that fits their application needs. In some cases, the mating height of the standard FMC connectors may prevent fully leveraging the connectivity options of all FMC+ modules. In response to that need, Samtec has developed the FMC Extender Card (REF-228680-01) for placement between FPGA Carrier Cards and FMC Modules. This increased space can be used for additional I/O expansion during development. The FMC Extender Card also provides a cost-effective option for extending the life of the FPGA Carrier Card HPC connectors used as test platforms.

零件编号：REF-228680-01

VCU118 FMC+™ HSPC Active Loopback Card: This loopback mezzanine card was designed to be used in conjunction with the Xilinx® UltraScale+ VCU118 Development board and is included in the VCU118 Development Kit available from Xilinx®. The mechanical design of the loopback card is based on an elongated version of the VITA™ 57.4 single width mezzanine card. This same loopback card is also available from Samtec as a standalone product to aid in FMC+™ development environments. This product is only available with Samtec's Flyover® QSFP28 Twinax Cable Assembly (HDR-193805-01-ECUE) and aluminum faceplate attached.

零件编号：REF-194194-03
