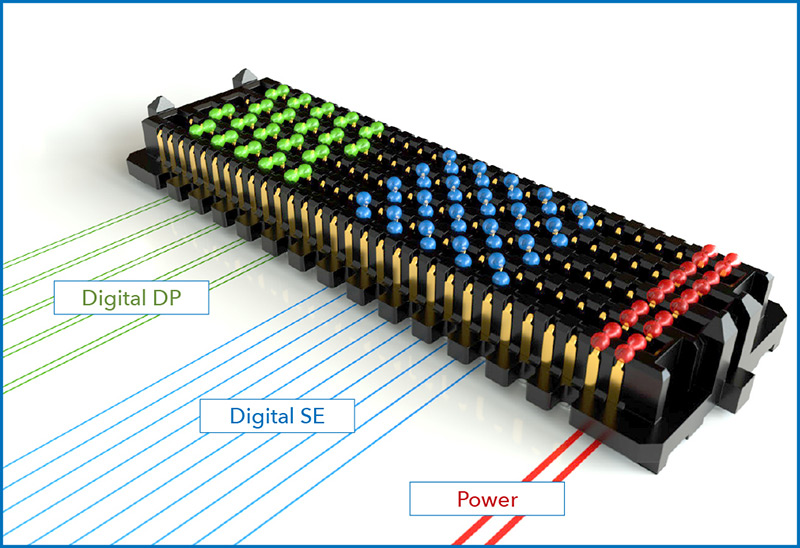

Original: Simultaneously run digital differential pairs, single-ended signals and power

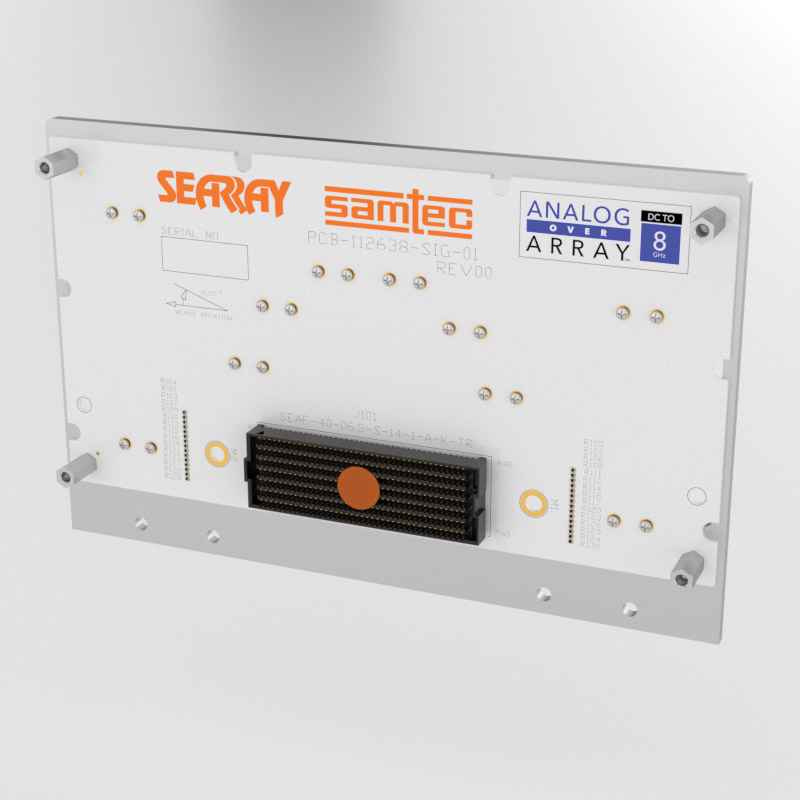

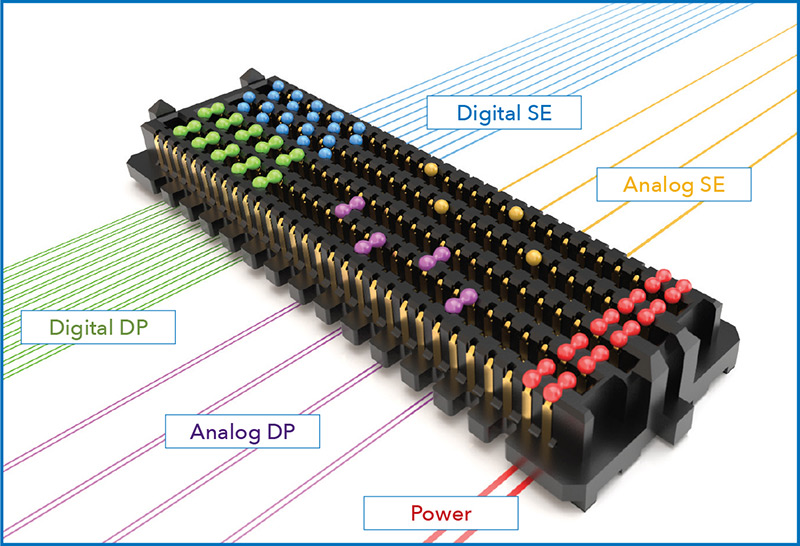

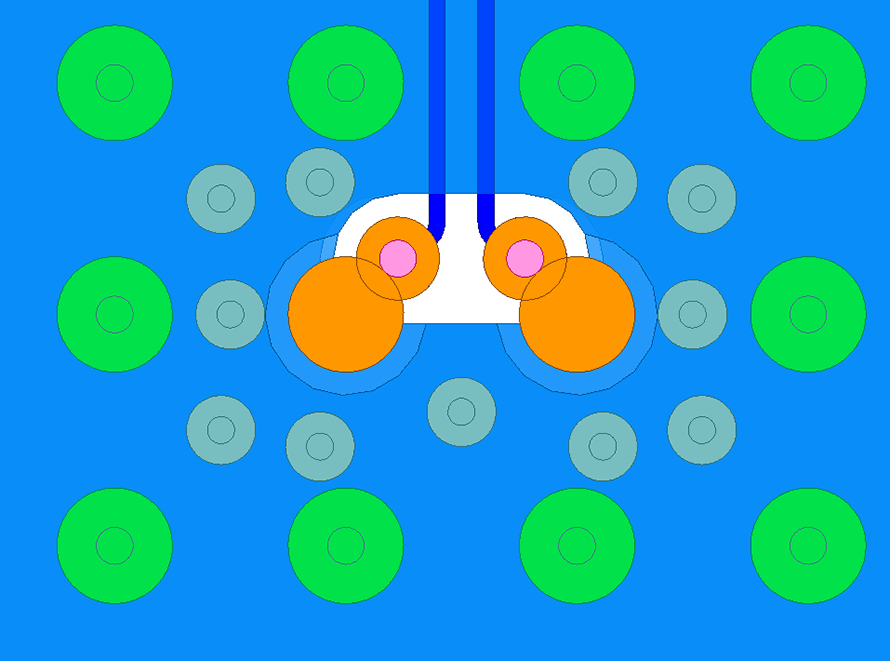

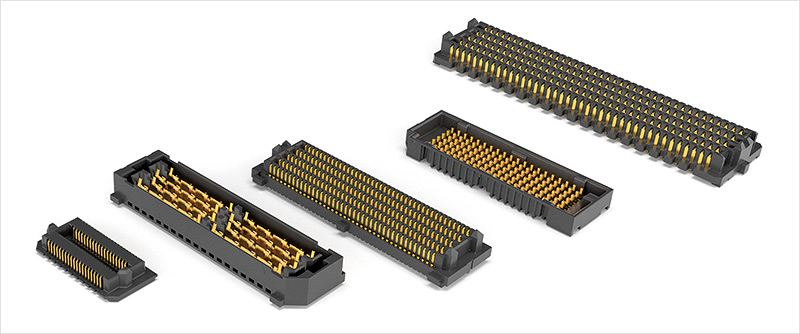

High-density RF applications typically require up to hundreds of individual RF connectors. Samtec Analog Over Array™ technology can replace dozens of precision RF connectors offering a smaller footprint, less weight and cost optimization. Samtec Analog Over Array™ connectors are dense, high-frequency, open-pin-field solutions supporting power, digital and analog differential or single-ended signaling. Samtec high-density array connectors are already proven in high-speed, high-performance digital applications. For RF applications, the Samtec Analog Over Array™ Reference Designs achieve industry-leading differential crosstalk and return loss performance up to 36 GHz. The reference designs specify recommended PCB stack up, launch optimizations, pin mapping guide, and full characterization report BOR.
