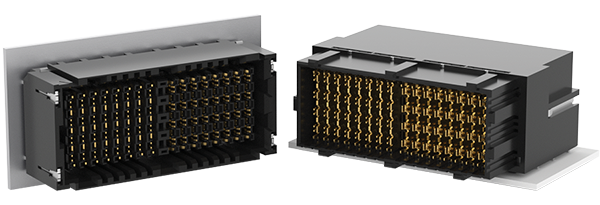

NovaRay® 128 Gbps PAM4微型耐用型背板系统

NovaRay®微型耐用型背板系统将超高密度与偏置封装相结合，以实现128 Gbps PAM4的最佳信号完整性性能。

系列概述

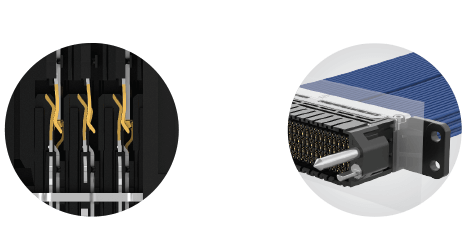

NovaRay®微型耐用型背板系统支持盲插应用，可选配导引及锁合，以及用于安全连接到电路板的标准焊接片。超高密度设计允许在单个连接器中容纳多达128个差分对，并具有可配置信号组，以实现设计灵活性。为了实现高达128 Gbps PAM4的性能，值得信赖的NovaRay®晶片设计消除了对内偏斜，并在差分对之间和周围采用了大尺寸连续接地刀片以消除共振。

特色

超高密度，单个连接器中具有多达128个差分对
每个通道128Gbps PAM4性能
PCIe® 7.0兼容
支持盲插应用
表面安装，密度更高、性能更好
偏置封装可实现最佳信号完整性
设计采用Flyover®电缆组件

评估和开发套件

NovaRay® Flyover® SI评估套件

As data rates increase, trace length on PCBs decrease. Samtec's high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The NovaRay® Flyover® SI Evaluation Kit REF-213732-X.XX-01 provides system designers and SI engineers an easy-to-use solution for testing 0.80 mm NovaRay® Extreme Density & Performance Socket Cable Assemblies. The NovaRay® Flyover® SI Evaluation Kit delivers a high-quality system with robust mechanical design. Please contact Samtec's technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-213732-X.XX-01

NovaRay® I/O Flyover® SI评估套件

As data rates increase, trace lengths on PCBs decrease. Samtec's high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The NovaRay® I/O SI Evaluation Kits provides system designers and SI engineers an easy-to-use solution for testing the NovaRay® I/O 112 Gbps PAM4 Panel Mount Cable System or the NovaRay® I/O Rugged 38999 Panel Mount Cable System. The NovaRay® I/O Flyover® SI Evaluation Kit (REF-224735-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, 0.80 mm NovaRay® Extreme Density & Performance Terminals for NVAC Series, 0.80 mm NovaRay® Extreme Density & Performance Socket Cable Assemblies and finally a NovaRay® I/O Extreme Performance Cable Assembly via the front panel. The NovaRay® I/O Flyover® Rugged 38999 SI Evaluation Kit (REF-232667-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, 0.80 mm NovaRay® Extreme Density & Performance Terminals for NVAC Series, NovaRay® I/O Rugged 38999 Panel Mount Cable Assemblies and finally a NovaRay® I/O Rugged 38999 I/O Cable Assembly via the front panel. The NovaRay® I/O Flyover® SI Evaluation Kits deliver a high-quality system with robust mechanical design. Please contact Samtec's technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-224735-X.XX-XX

NovaRay® SI评估套件

Samtec 0.80 mm NovaRay® Extreme Density & Performance Connectors combine fully shielded differential pair design and two reliable points of contact for extreme density and extreme performance. The NovaRay® SI Evaluation Kit provides system designers and SI engineers an easy-to-use solution for testing NovaRay® connectors. The NovaRay® SI Evaluation Kit delivers a high-quality system with robust mechanical design. It can be used standalone for NovaRay® connectors. Please contact Samtec’s technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-212761-X.XX-XX

下载和资源

资料

高速电缆互连方案指南

下载PDF文件

技术文档

Cable Management in High-Data-Rate Applications White Paper

产品

NVCF

NovaRay®微型耐用型背板电缆插座

特色

128 Gbps PAM4性能（电缆到电缆和电缆到板）
PCIe® 7.0兼容
导柱有助于对接，并确保可靠连接
可在单个连接器中配置信号组，实现终极设计灵活性（选择晶片信号设计）
晶片信号选项：差分对、端子开放式（单端）或电源
34 AWG 92 Ω Eye Speed Thinax™超低偏斜双芯电缆、34 AWG 50 Ω Eye Speed ThinSE™细微型同轴电缆或30 AWG电源线
箱外微型耐用型背板电缆组件

下载3D模型配置并加入购物车配置免费样品技术参数

NVCM-RA

开发中 - NovaRay®微型耐用型背板电缆插头

特色

128 Gbps PAM4性能（电缆到电缆和电缆到板）
PCIe® 7.0兼容
导柱有助于对接，并确保可靠连接
可在单个连接器中配置信号组，实现终极设计灵活性（选择晶片信号设计）
晶片信号选项：差分对、端子开放式（单端）或电源
34 AWG 92 Ω Eye Speed Thinax™超低偏斜双芯电缆、34 AWG 50 Ω Eye Speed ThinSE™细微型同轴电缆或30 AWG电源线
内置盒装电缆组件，带终端2连接器种类
