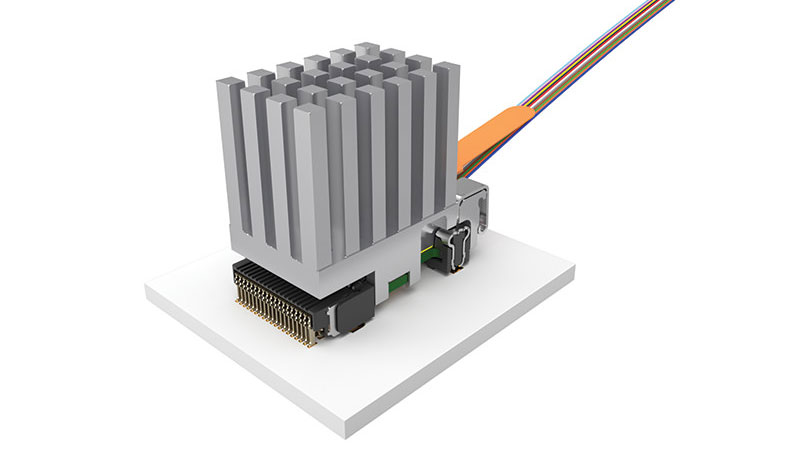

FireFly™光学收发机

Samtec的14 Gbps FireFly™ FMC™模块通过FPGA的10个通道为行业标准多模光纤电缆提供140 Gbps全双工带宽。FireFly™的光学引擎提供可调节功率等级，支持电缆长度达100 m。Samtec 14 Gbps FireFly™ FMC™模块支持数据中心、高性能计算和FPGA到FPGA协议，包括以太网、InfiniBand™、光纤通道和Aurora。作为VITA™ 57.1 FMC™，Samtec 14 Gbps FireFly™ FMC™模块可在任何FPGA开发板中用于光纤数据通信，支持高速数千兆位收发机。能够在所有通道并行运行系统数据或BERT测试，从而使FPGA的评估和开发变得更加容易。

零件编号：REF-193429-01

Samtec’s 25/28 Gbps FireFly™ FMC+™ Module provides up to 400/448 Gbps full-duplex bandwidth over up to 16 channels from an FPGA to an industry-standard multi-mode fiber optic cable. The FireFly™ optical engines provide adjustable power levels to support cable lengths up to 100 m. The Samtec 25/28 Gbps FireFly™ FMC+™ Module supports Data Center, High Performance Computing, and FPGA-to-FPGA protocols including Ethernet, InfiniBand™, Fibre Channel, and Aurora. This VITA™ 57.4 FMC+™ solution can be used for optical data communication on any FPGA development board supporting high-speed multi-gigabit transceivers.

零件编号：REF-200772-25G-XX-01 / REF-200772-28G-XX-01

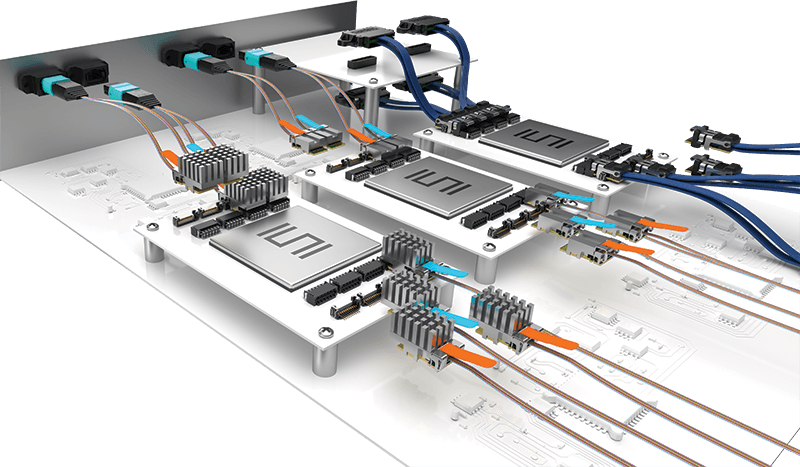

As data rates increase, trace length on PCBs decrease. Samtec's Flyover® Technology simplifies PCB design and limits signal degradation in high data rate applications. Samtec's FireFly™ Micro Flyover System™ offers the flexibility of using optical and copper interconnects interchangeably with the same connector system. The 28 Gbps FireFly™ Evaluation Kits provide system designers, optical and SI engineers an easy-to-use solution for testing the FireFly™ Micro Flyover System™. Rated up to 28 Gbps per lane, these kits allow the designer real-time evaluation of an actively running copper or optical FireFly™ system in their lab. REF-209623-01 supports: x4 configuration in all speeds x12 configurations below 16 Gbps REF-230408-X.XX-01 supports: x12 configuration at 25 Gbps and 28 Gbps The 28 Gbps FireFly™ Evaluation Kits deliver a high-quality system with robust optical, electrical and mechanical design. Please contact Samtec's technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-209623-01 / REF-230408-X.XX-01

Samtec 20+ Gbps FireFly™ Edge Card Socket Assembly is one part of a two-piece system with a tiny footprint on the board and interchangeable for both copper and optical flyover cable assemblies. The UEC5-2 SI Evaluation Kit provides system designers and SI engineers an easy-to-use solution for testing UEC5-2 connectors. The UEC5-2 SI Evaluation Kit delivers a high-quality system with robust mechanical design. It can be used standalone for a 20+ Gbps FireFly™ Edge Card Socket Assembly. Please contact Samtec’s technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-209372-X.XX-XX

Samtec's PCIe®-Over-Fiber Adaptor Cards enable long distance PCIe® 3.0/4.0 interfaces in computer-to-computer and computer-to-end point applications while supporting transparent and non-transparent bridge links.

零件编号：PCOA

VCU118 FMC+™ HSPC Active Loopback Card: This loopback mezzanine card was designed to be used in conjunction with the Xilinx® UltraScale+ VCU118 Development board and is included in the VCU118 Development Kit available from Xilinx®. The mechanical design of the loopback card is based on an elongated version of the VITA™ 57.4 single width mezzanine card. This same loopback card is also available from Samtec as a standalone product to aid in FMC+™ development environments. This product is only available with Samtec's Flyover® QSFP28 Twinax Cable Assembly (HDR-193805-01-ECUE) and aluminum faceplate attached.

零件编号：REF-194194-03
