NovaRay® I/O 128 GbPS PAM4面板安装电缆系统

NovaRay® I/O使用Flyover®电缆技术，可将高达4,096 Gbps PAM4的总数据从IC封装路由到面板等组件，并采用坚固耐用的38999外壳。

系列概述

NovaRay® I/O offers the highest aggregate data rate on the market, 4,096 Gbps PAM4, with a high-density cable-to-cable bulkhead or threaded 38999 panel connection. Flyover® cable technology routes data above lossy PCB to simplify board layout and extend signal reach, both inside and outside of the box. Passive electric external cables prevent a large thermal load at the panel and require no heat sinks, saving valuable panel space.

特色

市面最高总数据速率 - 4,096 Gbps PAM4
每通道128 Gbps PAM4
PCIe® 7.0兼容

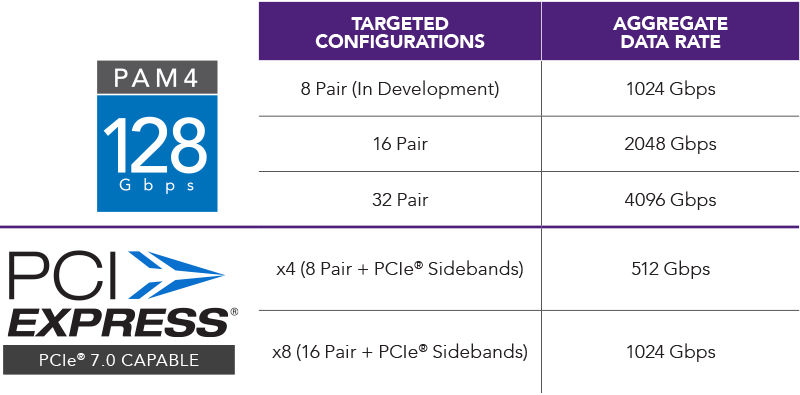

16 & 32差分对配置；可容纳PCIe® x4或x8 plus边带

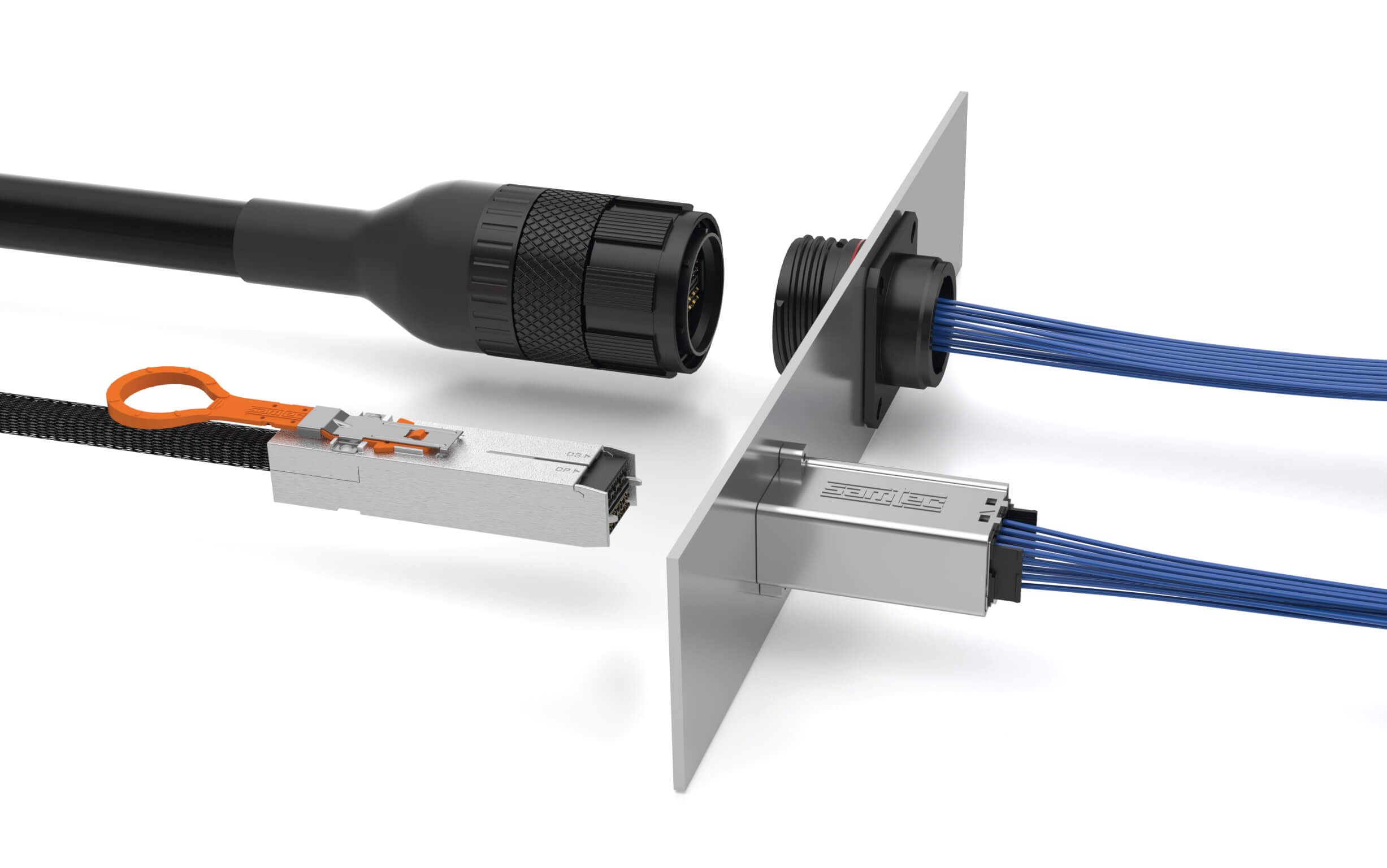

采用Flyover®电缆技术的电缆到电缆隔板或螺纹38999面板连接
耐用型38999外壳可抗盐雾48小时，提供IP67密封选项（NVA3E/NVA3P）

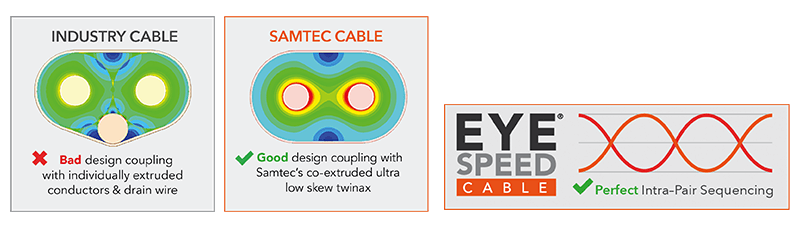

外部电缆：28或34 AWG超低偏斜双芯
内部电缆：34 AWG超低偏斜双芯或Thinax™
还提供单端ThinSE™同轴电缆选项
外部全EMI防护
为您的ASIC相邻Flyover®互连器提供多端2高速连接器选择

兼容pci express第6代 — PCIe® 7.0支持高达4096 Gbps的总数据速率

NovaRay® Flyover® SI评估套件

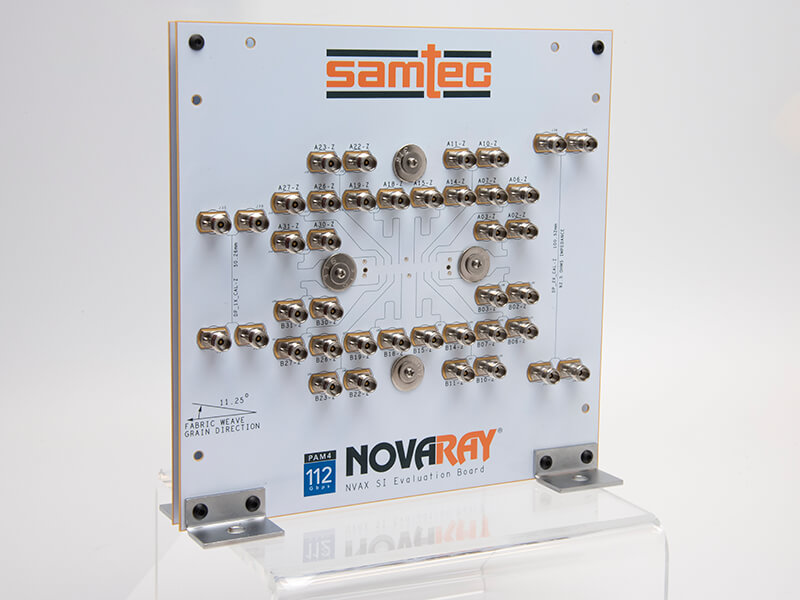

As data rates increase, trace length on PCBs decrease. Samtec's high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The NovaRay® Flyover® SI Evaluation Kit REF-213732-X.XX-01 provides system designers and SI engineers an easy-to-use solution for testing 0.80 mm NovaRay® Extreme Density & Performance Socket Cable Assemblies. The NovaRay® Flyover® SI Evaluation Kit delivers a high-quality system with robust mechanical design. Please contact Samtec's technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-213732-X.XX-01

NovaRay® I/O Flyover® SI评估套件

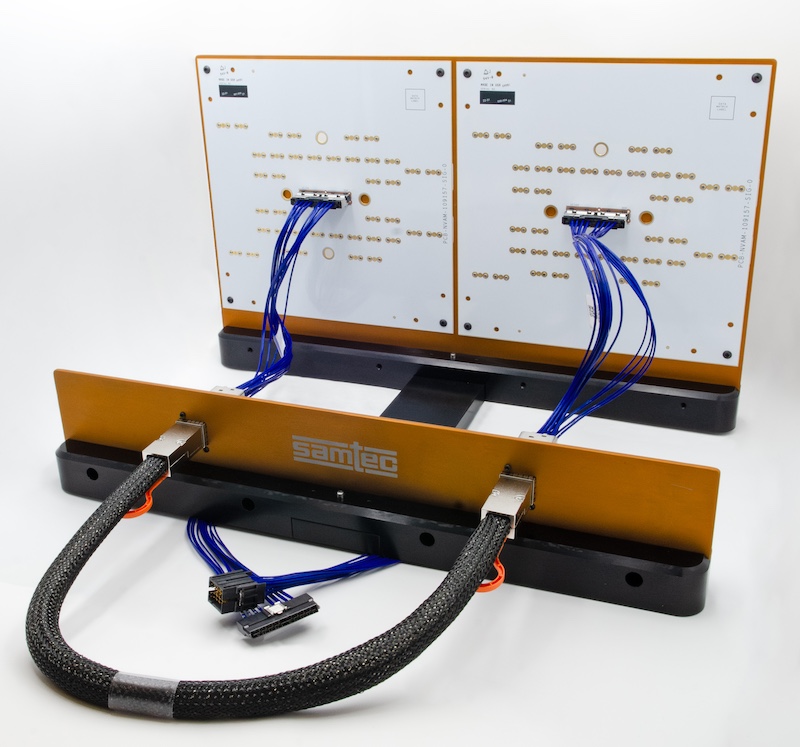

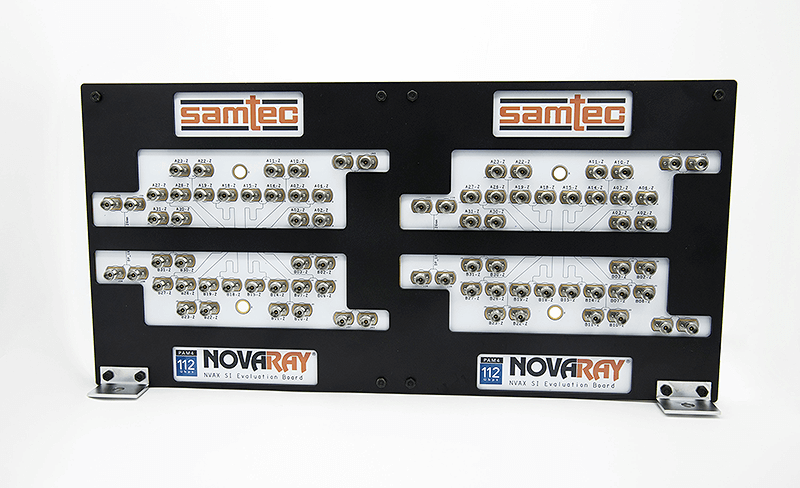

As data rates increase, trace lengths on PCBs decrease. Samtec's high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The NovaRay® I/O SI Evaluation Kits provides system designers and SI engineers an easy-to-use solution for testing the NovaRay® I/O 112 Gbps PAM4 Panel Mount Cable System or the NovaRay® I/O Rugged 38999 Panel Mount Cable System. The NovaRay® I/O Flyover® SI Evaluation Kit (REF-224735-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, 0.80 mm NovaRay® Extreme Density & Performance Terminals for NVAC Series, 0.80 mm NovaRay® Extreme Density & Performance Socket Cable Assemblies and finally a NovaRay® I/O Extreme Performance Cable Assembly via the front panel. The NovaRay® I/O Flyover® Rugged 38999 SI Evaluation Kit (REF-232667-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, 0.80 mm NovaRay® Extreme Density & Performance Terminals for NVAC Series, NovaRay® I/O Rugged 38999 Panel Mount Cable Assemblies and finally a NovaRay® I/O Rugged 38999 I/O Cable Assembly via the front panel. The NovaRay® I/O Flyover® SI Evaluation Kits deliver a high-quality system with robust mechanical design. Please contact Samtec's technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-224735-X.XX-XX

NovaRay® SI评估套件

Samtec 0.80 mm NovaRay® Extreme Density & Performance Connectors combine fully shielded differential pair design and two reliable points of contact for extreme density and extreme performance. The NovaRay® SI Evaluation Kit provides system designers and SI engineers an easy-to-use solution for testing NovaRay® connectors. The NovaRay® SI Evaluation Kit delivers a high-quality system with robust mechanical design. It can be used standalone for NovaRay® connectors. Please contact Samtec’s technical experts at [email protected] 联系Samtec的技术专家。

零件编号：REF-212761-X.XX-XX
